In industrial float-based systems, liquid level control is influenced by both the level switch’s working principle and the function of a liquid level controller, which work together to manage fluid levels effectively. The level switch, based on a float mechanism, operates using buoyancy—it rises or falls with the liquid and triggers a switch at a specific point to signal a high or low level. This basic on/off signal provides the critical input needed to start or stop pumps, open or close valves, or activate alarms.
A liquid level controller takes these signals from one or more level switches and applies logic-based control to regulate system operations more precisely. Instead of acting only when a single level is reached, the controller can manage liquid between two points (like low and high setpoints), initiate timed responses, or integrate with broader automation systems. This combination allows float-based level switches to move from simple point-level detection to automated, efficient, and reliable level management, improving overall system performance and reducing the need for manual intervention.
The Fundamental Principle of Liquid Level Control
Liquid level control is an automated process used to maintain a desired liquid level within tanks, vessels, or other containers. It operates on the fundamental principle of maintaining a desired liquid height within a vessel or tank through continuous monitoring and adjustment of inflow and outflow rates. In effect, it involves monitoring, regulating, and maintaining fluid levels within a tank or process system to ensure safe and efficient operation. Any control strategy must also take into account factors such as fluid density, viscosity, temperature variations, and external disturbances that can affect the system’s stability and response time.
Control systems can be based on continuous measurements or discrete level detection, often using sensors or mechanical devices like float switches that detect the current liquid level, compare it to a setpoint, and generate corrective actions to minimize any deviation. In either instance, the goal is to keep the liquid within a desired range—preventing overflow, dry running of pumps, or process disruption. Control systems achieve this by activating pumps, valves, or alarms in response to changes in liquid levels, often guided by predefined setpoints and logic within a controller or PLC (programmable logic controller).
Advantages of Float-Based Systems
Float-based systems represent one of the most widely used mechanical approaches to liquid level control in industrial applications, utilizing the buoyancy principle where a float rises and falls with the liquid surface. In these systems, the float’s vertical movement is mechanically linked to control valves, switches, or transmitters that regulate flow or signal level changes to automated controls that manage processes like tank filling, emptying, or maintaining equilibrium between interconnected vessels. This integration enables more reliable, scalable, and fail-safe operations, reducing manual intervention, minimizing system wear, and improving the overall efficiency of industrial fluid handling systems.
Float-based systems remain popular due to their durability, cost-effectiveness, and ability to function in harsh environments. Key advantages include:
- Simplicity – Easy to install, minimal calibration required
- Durability – Perform reliably in dirty, corrosive, or turbulent liquids
- Cost-Effectiveness – Lower upfront cost than electronic sensors
- Reliability – Immune to electrical noise and ideal for industrial settings
- Versatility – Effective for pump control, overflow protection, and tank filling/draining
Float systems are also particularly well-suited for applications involving high-viscosity or contaminated fluids, where non-contact electronic sensors may fail.

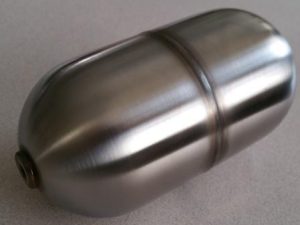

Material Selection: Why Stainless Steel?
Stainless steel is the material of choice for many industrial float-based level systems due to its:
- Corrosion resistance in harsh or high-temperature environments
- Long service life compared to plastics
- Compatibility with a wide range of liquids
- Strength for both floats and structural components
This makes stainless steel floats a dependable solution across industries such as water treatment, chemical processing, and food and beverage.
FAQs on Float-Based Liquid Level Control
What industries use float-based level control systems?
They are common in water treatment, oil and gas, chemical processing, food and beverage, pharmaceuticals, and municipal utilities.
Are float switches reliable in corrosive or dirty liquids?
Yes. Stainless steel float systems are specifically designed to handle challenging conditions like corrosive, viscous, or contaminated liquids.
Do float-based systems require maintenance?
Minimal maintenance is needed compared to electronic systems. Routine inspection ensures long service life.
Why choose stainless steel floats over plastic?
Stainless steel offers superior corrosion resistance, strength, and performance in extreme environments, reducing replacement frequency and downtime
Partner with the Leader in Stainless Steel Float Balls and Tanks
Arthur Harris & Company has been a trusted leader in the stainless steel float-based systems for liquid level control since 1918, consistently delivering high-quality products and exceptional service to our valued customers. As a job shop manufacturer, we specialize in producing a wide range of stainless steel float balls and tanks, each designed to meet the unique needs of our clients. Whether you’re looking for a custom solution or a standard product, our team of experts is dedicated to providing personalized service and support to ensure your project’s success. For more information or to discuss your company’s needs, contact us onlinetoday or call us at (312) 666-6832.
